Help with determining your electrode ordercode.

Does your AD-box has MK2 or MK3 connectors?

- MK2 connectors Find your ordercode
- MK3 connectors Find your ordercode

Answer the above questions and your ordercode will
be displayed at the end.

a




Click this link to see if your AD-box has MK2 or MK3 connectors:
http://www.biosemi.com/faq/old_vs_new_connectors.htm

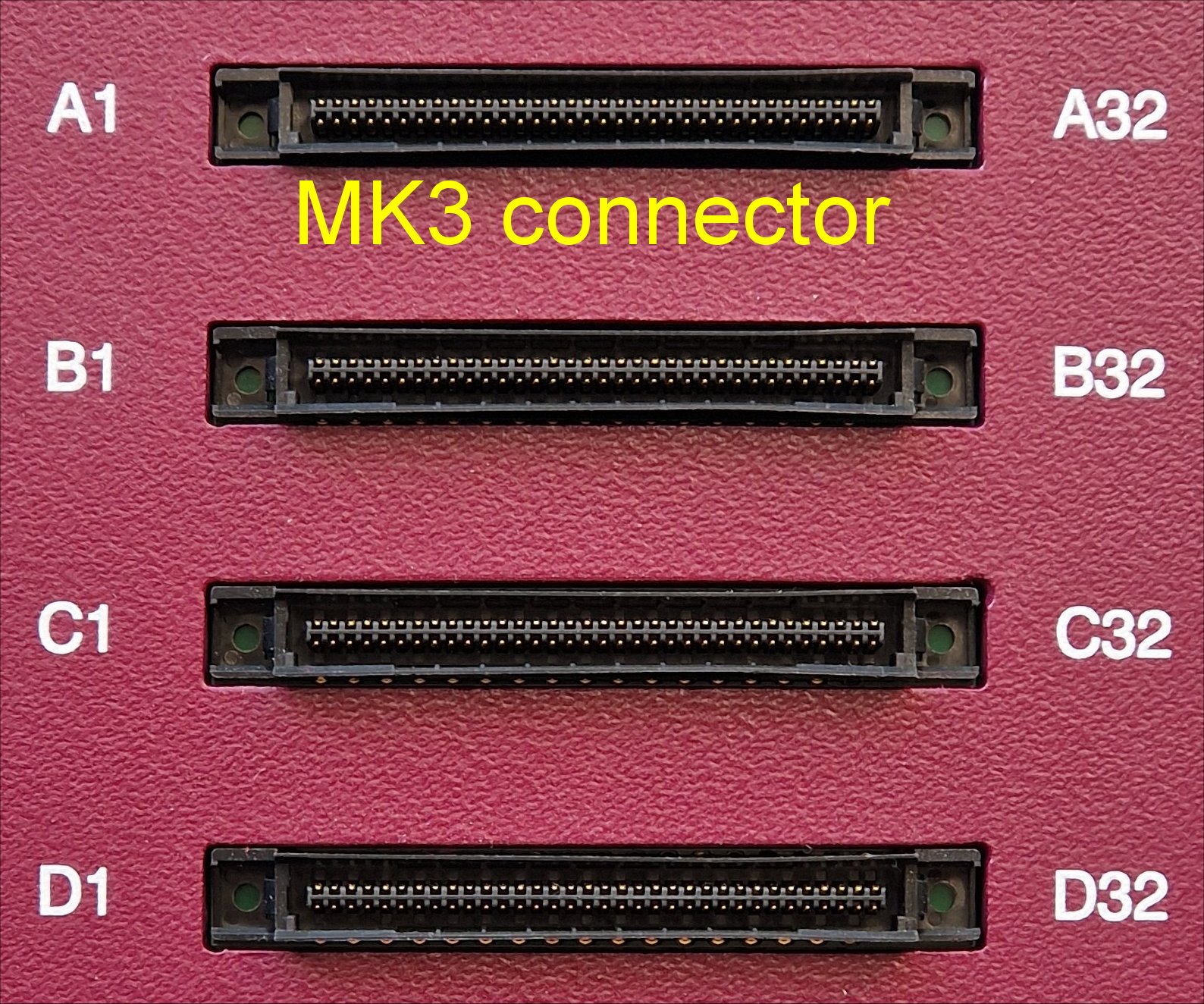

 Active3
MK3 connectors
Shipped from April 2024

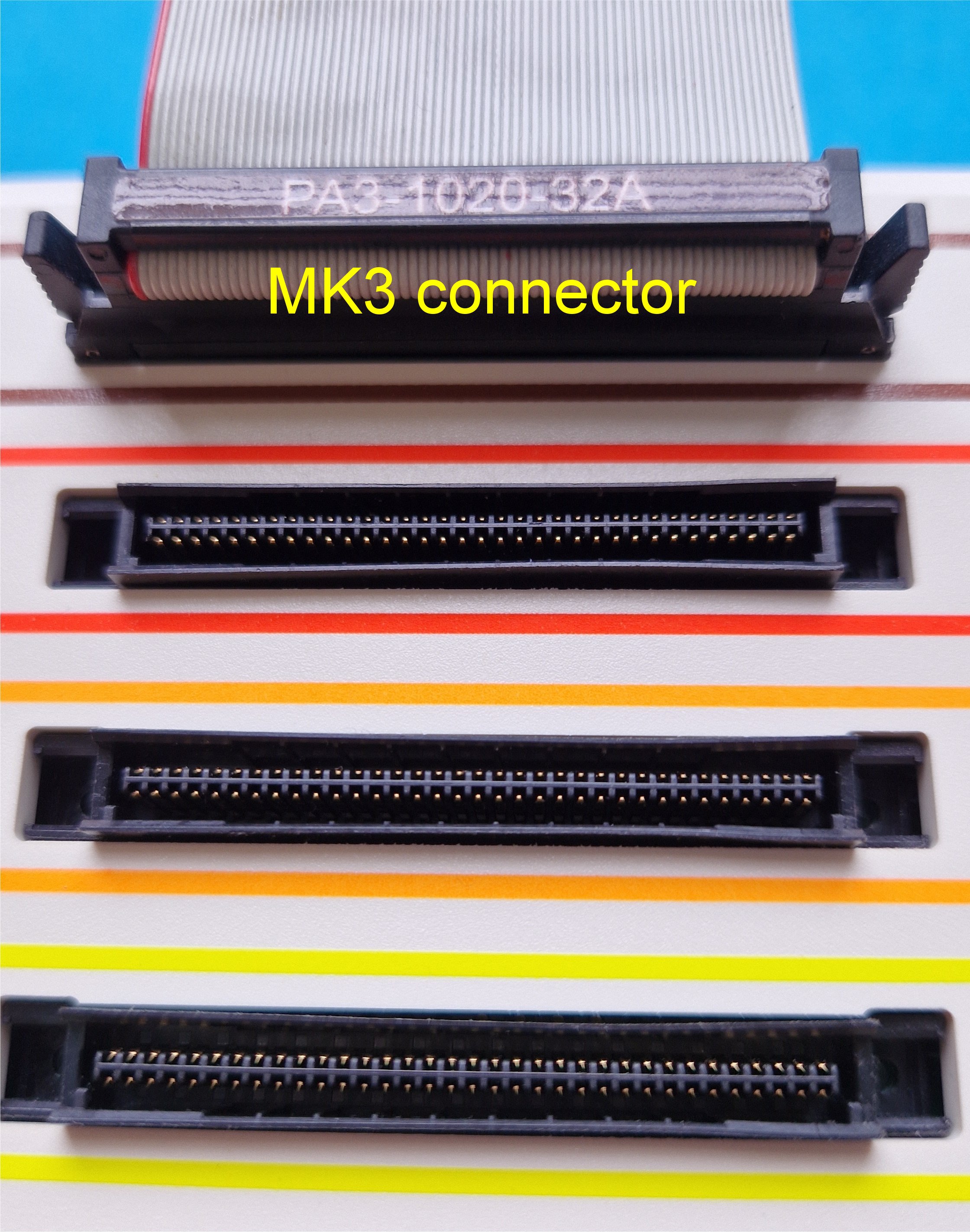

Active2.5
MK3 connectors
Shipped from September 2023

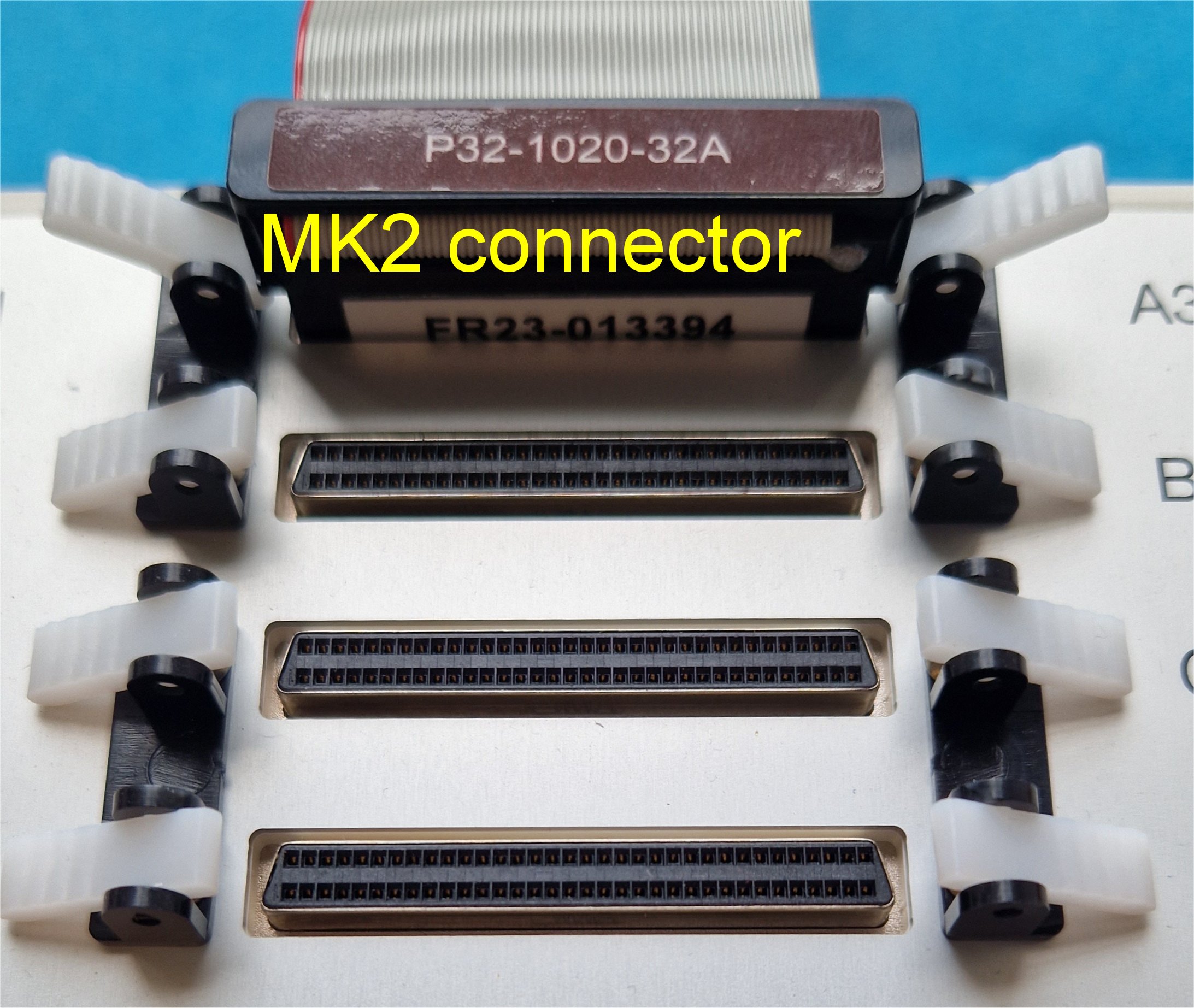

   Active2
MK2 connectors
Shipped untill September 2023



Order code for AD-box with MK2 connectors Order code for AD-box with MK3 connectors Nr. of electrodes Labeling Description
P32-1020-16A MK3-1020-16 16 Pin 1020 16 channel A-set for a 32 channel AD-box.
P32-1020-32A MK3-1020-32 32 Pin 1020 32 channel A-set for a 32 channel AD-box.
P32-1020-32ACMS ---------------- 32 Pin + CMS/DRL 1020 32 channel A-set for a 32 channel AD-box. (including CMS/DRL)
P32-1020-64A MK3-1020-64A 32 Pin 1020 32 channel A-set for a 64 channel AD-box. (left side/half of the headcap)
P32-1020-64ACMS ---------------- 32 Pin + CMS/DRL 1020 32 channel A-set for a 64 channel AD-box. (left side/half of the headcap) (including CMS/DRL)
P32-1020-64B MK3-1020-64B 32 Pin 1020 32 channel B-set for a 64 channel AD-box. (right side/half of the headcap)
P32-ABC-A MK3-ABC-A 32 Pin ABC 32 channel A-set.
P32-ABC-ACMS ---------------- 32 Pin + CMS/DRL ABC 32 channel A-set. (including CMS/DRL)
P32-ABC-B MK3-ABC-B 32 Pin ABC 32 channel B-set.
P32-ABC-C MK3-ABC-C 32 Pin ABC 32 channel C-set.
P32-ABC-D MK3-ABC-D 32 Pin ABC 32 channel D-set.
P32-ABC-E ---------------- 32 Pin ABC 32 channel E-set.
P32-ABC-F ---------------- 32 Pin ABC 32 channel F-set.
P32-ABC-G ---------------- 32 Pin ABC 32 channel G-set.
P32-ABC-H ---------------- 32 Pin ABC 32 channel H-set.
